LULU Solderable Kit Build Guide

LULU Solderable Kit Build Guide

Written By: Boardsource

Category: build guides - medium

Tags: 60%, ergo, kit

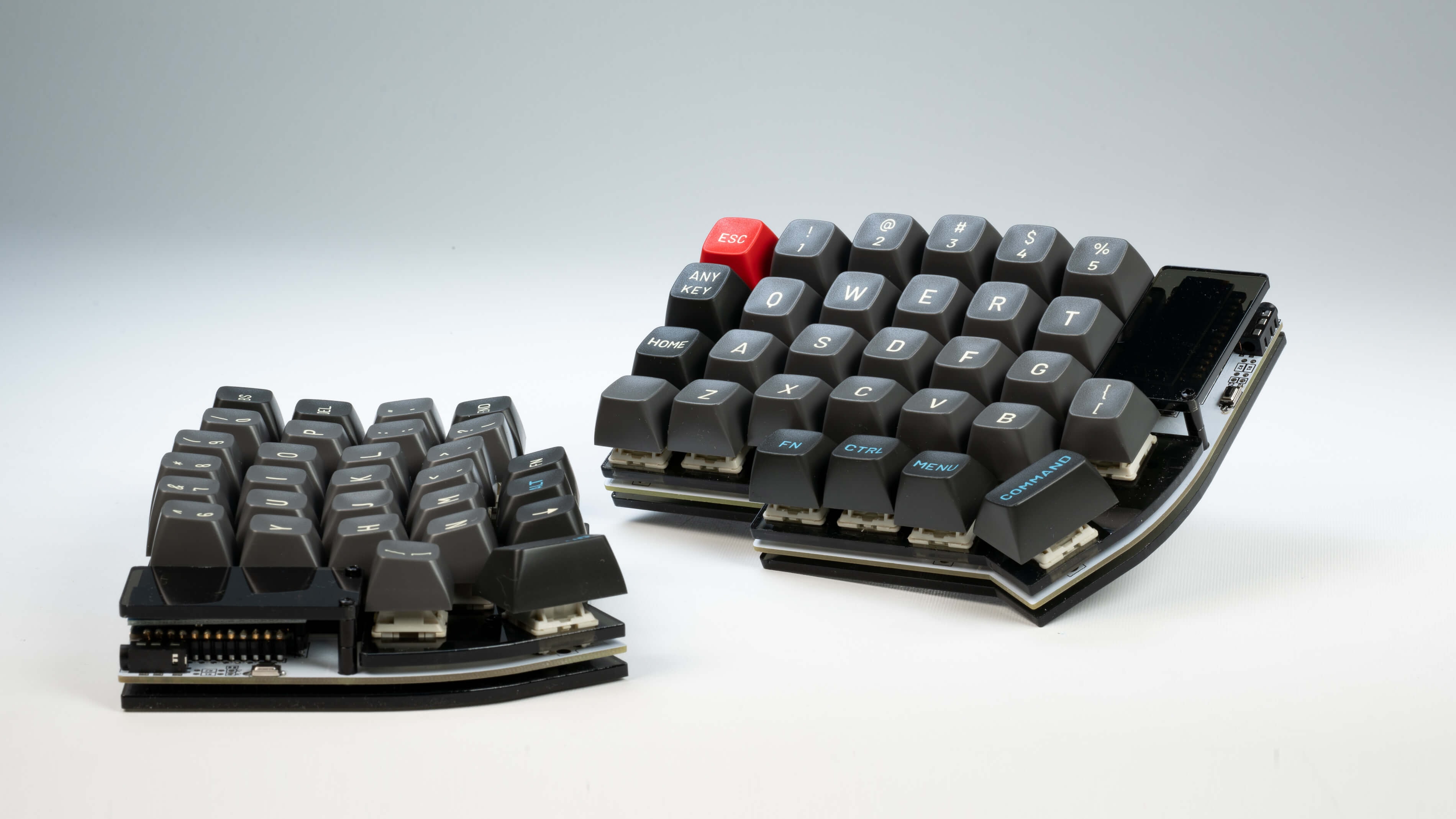

This guide is for LuLu solderable PCBs.

Parts

Required

ItemCount
SMD Diodes58
PCB2
Promicro style or similar microcontroller1
TRRS Jack2
TRRS Cable1
Reset Switch2
Choc/MX Hotswap Sockets58
Choc/MX Switches58
Choc/MX Keycaps58

Optional

ItemCount
128x32 OLED Display2
SK6812 Mini-E LED58
SK6821-MINI LED8
EC11 Encoder + Knob2

Soldering

Diodes

Orientation: Black bar facing thick wite line on indicator.

  1. Solder one pad. one pad - diode
  2. While holding diode with tweezers, reflow solder and place diode down on pad. diode placed
  3. Solder other pad. diode complete
  • Note, when working with MELF package diodes, you may need to reflow and add more solder a couple times before an adequate connection is made.

LEDs

Orientation: Notched corner/pin facing the pad marked with rectangle. This applies for both SK6812 Mini-E & SK6821-MINI LEDs. sk6812 mini e
orientation SK6821-MINI
orientation

  • Notes: \ - This component is heat sensitive. Be cautious and work at a safe temp (~300c). \ - It is wise to test the LEDs as you solder then. Consider soldering your controllers beforehand. \
  1. Solder one pad. (it may be easier to solder all 4 pads before placing LED down when installing SK6821-MINI LEDs) sk6812 mini e one
pad SK6821-MINI 4
pads
  2. While holding LED with tweezers, reflow solder and place LED down on pad. sk6812 mini e placed SK6821-MINI
placed
  3. Solder remaining pads. sk6812 mini e
complete

Hotswap sockets

  1. Solder one pad. Hot swap socket foot print
soldered
  2. While holding hotswap socket (fingers are fine), reflow solder and place socket down on pad. Hot swap socket one pin
soldered
  3. Solder other pad. Hot swap socket
finished
  • Note, don't hesitate to use a little extra solder, as that will help secure the socket and prevent it from being ripped off.

Microcontrollers

Orientation: Both microcontrollers face down.

  • Note, it is recommended to flash each microcontroller prior to soldering. See firmware section for more.
  1. Insert headers from front, solder in from the back. headers
inserted
  2. Place microcontroller face down. microcontroller
placed
  3. Apply solder to all pins.
  4. Use flush cutters or similar to trim excess from pins on each side. microcontroller finished

OLEDs

  1. Insert headers from front, solder in from the back. Oled
placed
  2. Solder only one of pins to begin with. oled back one pin
soldered
  3. While reflowing solder joint, position OLED so that it is level & straight.
  4. Solder remaining pins and clip extra length of pins. oled
finished

Misc.

TRRS jacks

  1. Position TRRS jack on front of PCB and secure with tape. trrs jack
placed
  2. Apply solder to all four pins. trrs jack
finished

Reset switches

  1. Solder one pad. reset switch placed
  2. While holding switch with tweezers, reflow solder and place switch down on pad.
  3. Solder remaining pads. reset switch
placed

Firmware

QMK

In qmk this keyboard can be found under boardsource/lulu/avr. To begin, follow the QMK setup guide. (if working from an existing installation, an update may be needed.) \ For flashing instructions, see doc or video

KMK / PEG

In Peg or KMK this keyboard can be found under lily58 or boardsource-lulu-blok in Peg

Peg can be downloaded here, and the quick start can be seen here.

For Kmk can be downloaded here and the quick start can be seen here

Here are some links to other articles that may help you get the most out of your new keyboard:

Extra

For questions, ask in Boardsource Discord server
