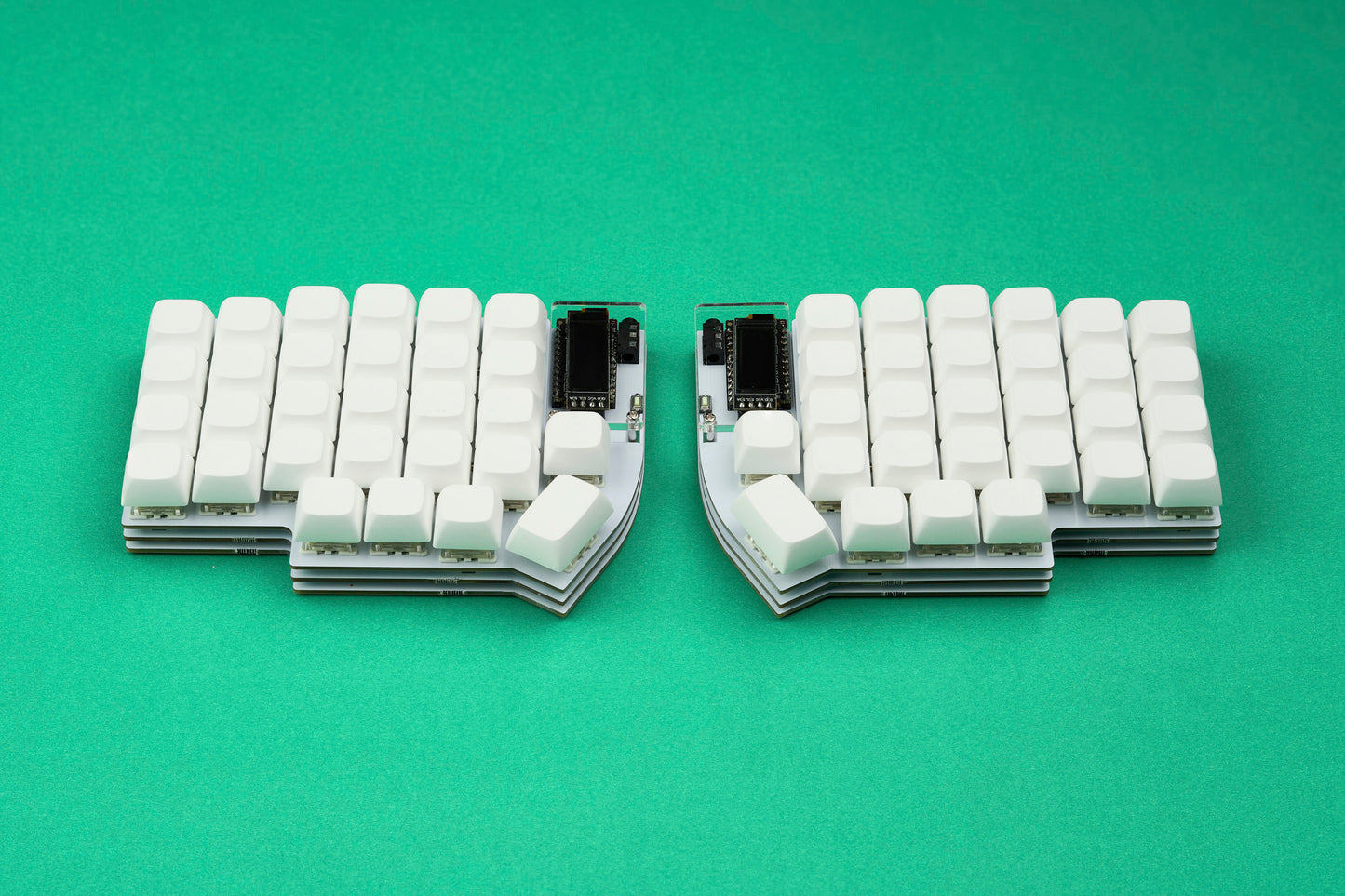

  • A white Lily58 keyboard with white keycaps shown from straight angle on top of a bright green backdrop.
1 6

Boardsource

Lily58 DIY Keyboard Kit - 60% Split

Lily58 DIY Keyboard Kit - 60% Split

View full details

Lily58 DIY Keyboard Kit - 60% Split

A solder-it-yourself Lily58 keyboard kit with a minimalist FR4 case. A flexible and ergonomic layout highly recommended to newcomers and beginners.

The Lily58 is a 60% split keyboard designed for comfort, adaptability, and simplicity. It’s one of the easiest ergonomic keyboards to transition to, offering a familiar layout with dramatically better ergonomics than traditional one-piece boards. Whether you're exploring split layouts for the first time or fine-tuning your daily setup, Lily58 is a standout option.

If you're looking for a premium aluminum case for your Lily58, check out Lily Pad.

Key Features

  • FR4 Case Included
    • Lightweight, minimalist, and reliable. The FR4 case includes hardware and acrylic screen covers, a great place to start.

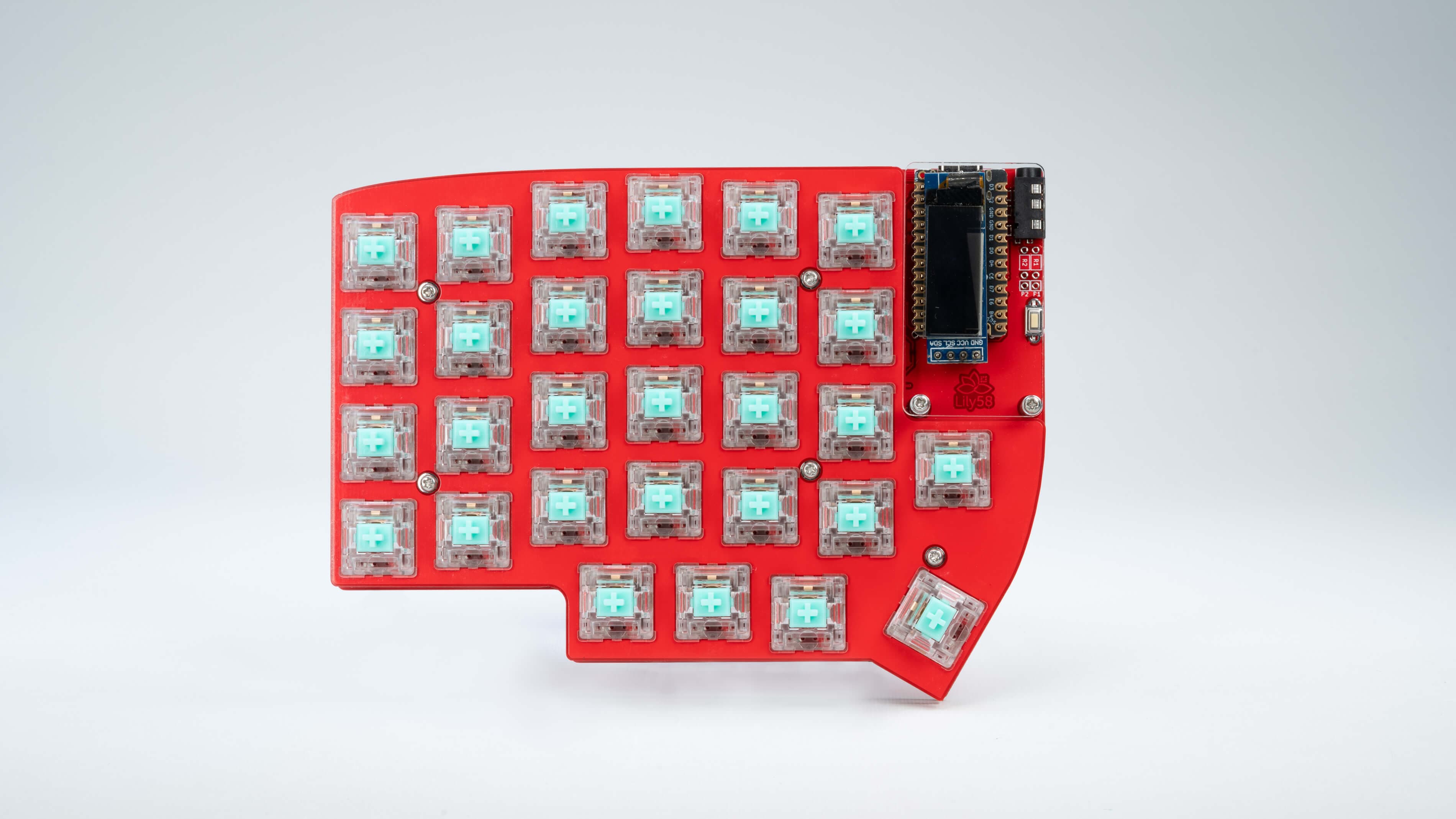

  • Solderable PCB - Lily58 v2
    • Supports both MX and Choc switches, including Choc v2. Includes RGB, OLED, encoder support, BLE footprints, and more. QMK and VIA compatible.
  • Wireless-Ready (BLE)
    • Easily configure a wireless build with BLE controllers like nice!nano. Solder power switches and battery leads to dedicated pads, resulting in a clean and streamlined build. Compatible with ZMK firmware.
  • Familiar Layout With Great Ergonomics
    • Lily58 uses a 6x4x4 layout, which is basically a standard 60% keyboard. It delivers standard keys with minimal or no layering, and offers immediate ergonomic benefits. A familiar layout that's easier to learn and quicker to adapt to than most ergonomic keyboards.
  • Customize Your Build
    • Choose your case color, PCB color, switches, controllers, and cables. Add or remove parts to customize your build.
  • Optional SMT PCB
    • Want to skip the soldering? Our Lily Pad SMT PCB offers a pre-assembled experience with all components pre-soldered.

Who It's For

This kit is ideal for:

  • First-time split keyboard users, the familiar 60% layout makes it one of the easiest ergonomic keyboards to learn and adjust to
  • DIY enthusiasts who are customizing a build

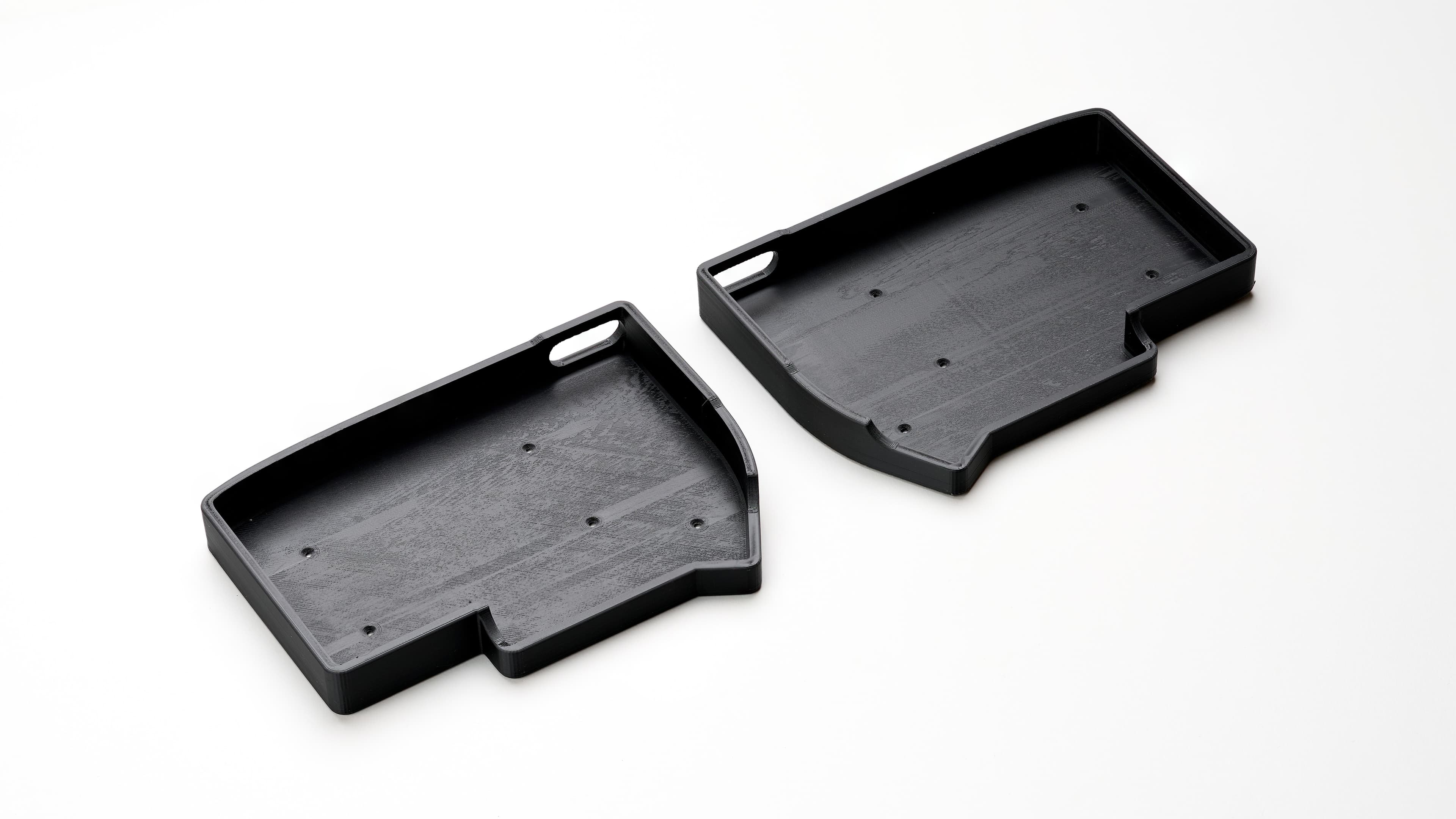

  • Builders looking to 3D print their own case
  • Wireless builders using BLE controllers

In The Box

Your final kit depends on selected options. It may include:

  • FR4 Case
    • 2x (Left and Right) Switch Plates
    • 2x (Left and Right) Backplates
    • 2x Acrylic Screen Covers
    • 8mm and 10mm Standoffs, Screws, Bumpons
  • Solderable PCB - Lily58 v2
    • 2x PCBs (Left and Right, 1 panel)
    • 2x RST Switches
    • 2x TRRS Jacks
  • Components
    • Default selections ensure the correct quantity for a complete build
    • Hotswaps and diodes sold in packs of 10
    • Switches sold in packs of 22
