Sessanta Build Guide

Sessanta Build Guide

Written By: Boardsource

Category: build guides - easy

Tags: kit

This guide is for Sessanta PCBs.

Parts

Required

ItemCount
SMD Diodes68
PCB1
Pro-micro or similar microcontroller1

| Reset Switch | 1 | | MX / Choc Hotswap Sockets | 68 | | MX / Choc Switches | 68 | | MX / Choc Keycaps | 68 |

Optional

ItemCount
SK6812 Mini-E LED68
WS2812B LED8

Soldering

Diodes

Orientation: Black bar facing downwards or towards the footprint indicator.

  1. Solder one pad. one pad - diode
  2. While holding diode with tweezers, reflow solder and place diode down on pad. diode placed
  3. Solder other pad. diode complete
  • Note, when working with MELF package diodes, you may need to reflow and add more solder a couple times before an adequate connection is made.

LEDs

Orientation: Notched corner/pin facing the pad marked with rectangle. This applies for both SK6812 Mini-E & WS2812B LEDs.

  • Notes:
    - This component is heat sensitive. Be cautious and work at a safe temp (~300c).
    - It is wise to test the LEDs as you solder then. Consider soldering your controllers beforehand\
  1. Solder one pad. (it may be easier to solder all 4 pads before placing LED down when installing WS2812B LEDs) sk6812 mini e one pad ws2812b 4 pads
  2. While holding LED with tweezers, reflow solder and place LED down on pad. sk6812 mini e placed ws2812b placed
  3. Solder remaining pads. sk6812 mini e complete ws2812b complete

Hotswap sockets

  1. Solder one pad. Hot swap socket foot print soldered
  2. While holding hotswap socket (fingers are fine), reflow solder and place socket down on pad. Hot swap socket one pin soldered
  3. Solder other pad. Hot swap socket finished
  • Note, don't hesitate to use a little extra solder, as that will help secure the socket and prevent it from being ripped off.

Microcontrollers

Orientation: Both microcontrollers CONTROLLERPLACEMENT.

  • Note, it is recommended to flash each microcontroller prior to soldering. See firmware section for more.
  1. Insert headers from front, solder in from the back. headers inserted
  2. Place microcontroller CONTROLLERPLACEMENT. microcontroller placed top pins tack soldered
  3. Apply solder to all pins.
  4. Use flush cutters or similar to trim excess from pins on each side. microcontroller finished

All Done!

Enjoy

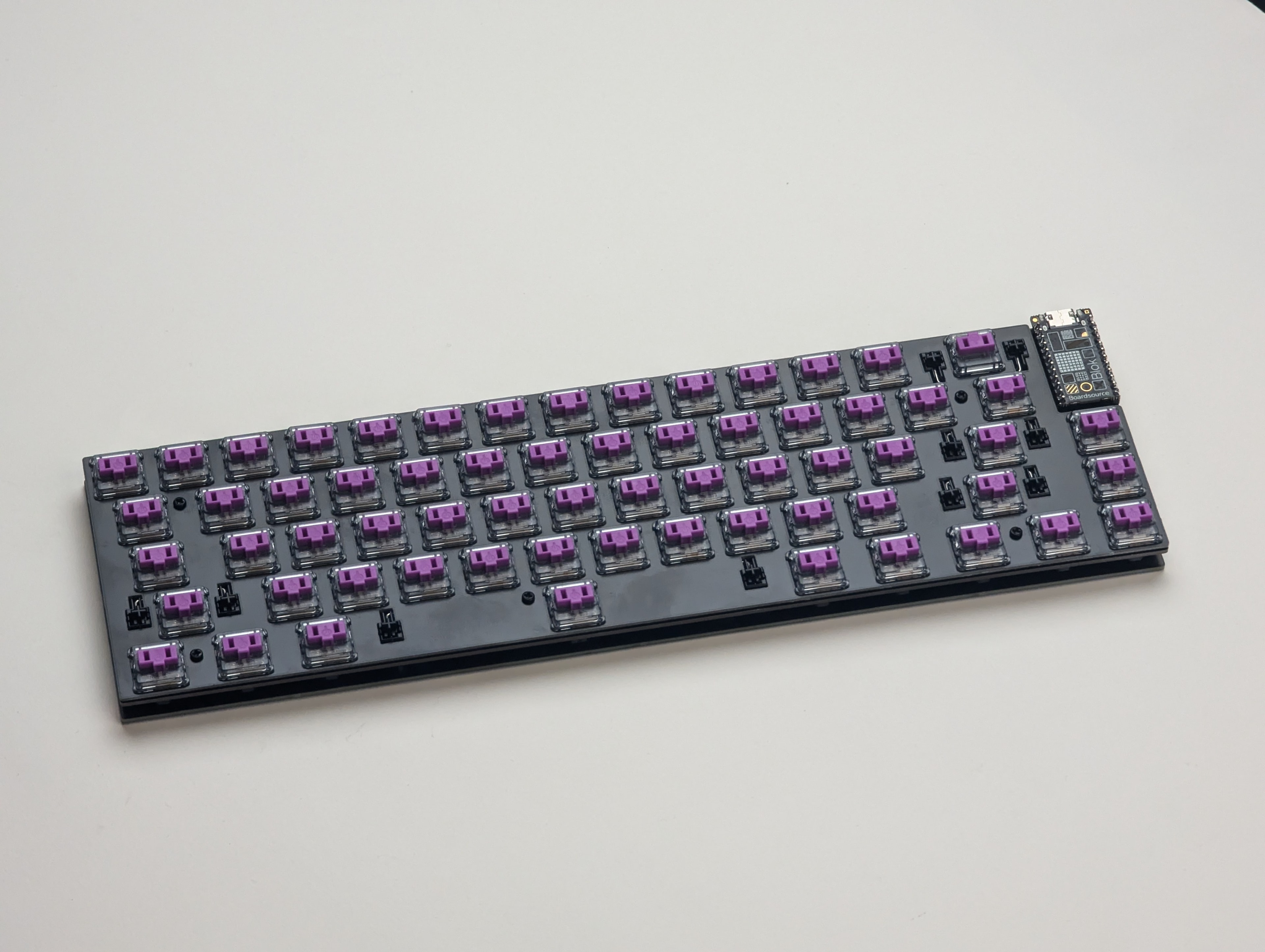

finished

Firmware

QMK

In qmk this keyboard can be found under boardsource/Sessanta. To begin, follow the QMK setup guide. (if working from an existing installation, an update may be needed.)
For flashing instructions, see doc or video

Extra

For questions, ask in Boardsource Discord server
