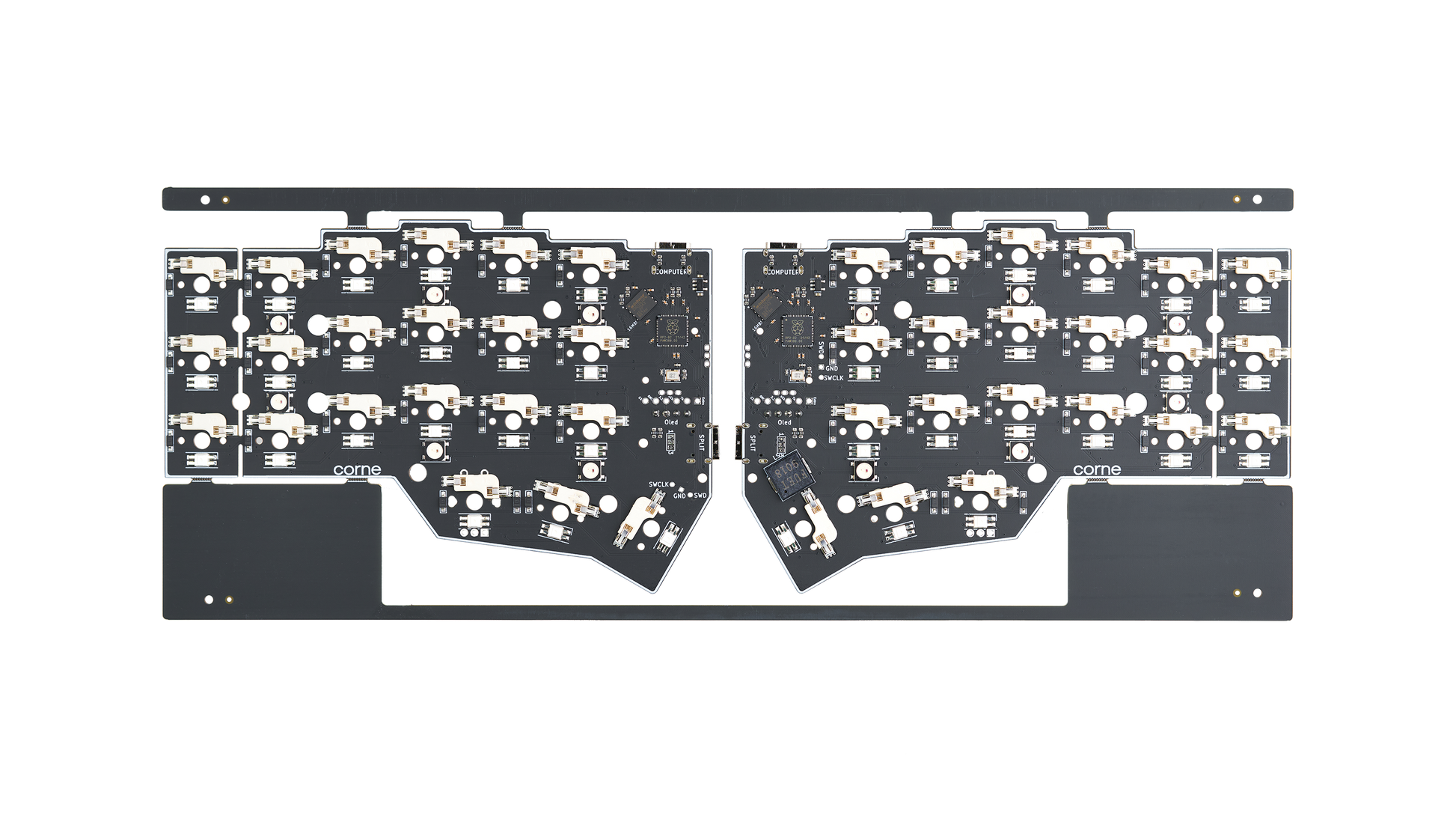

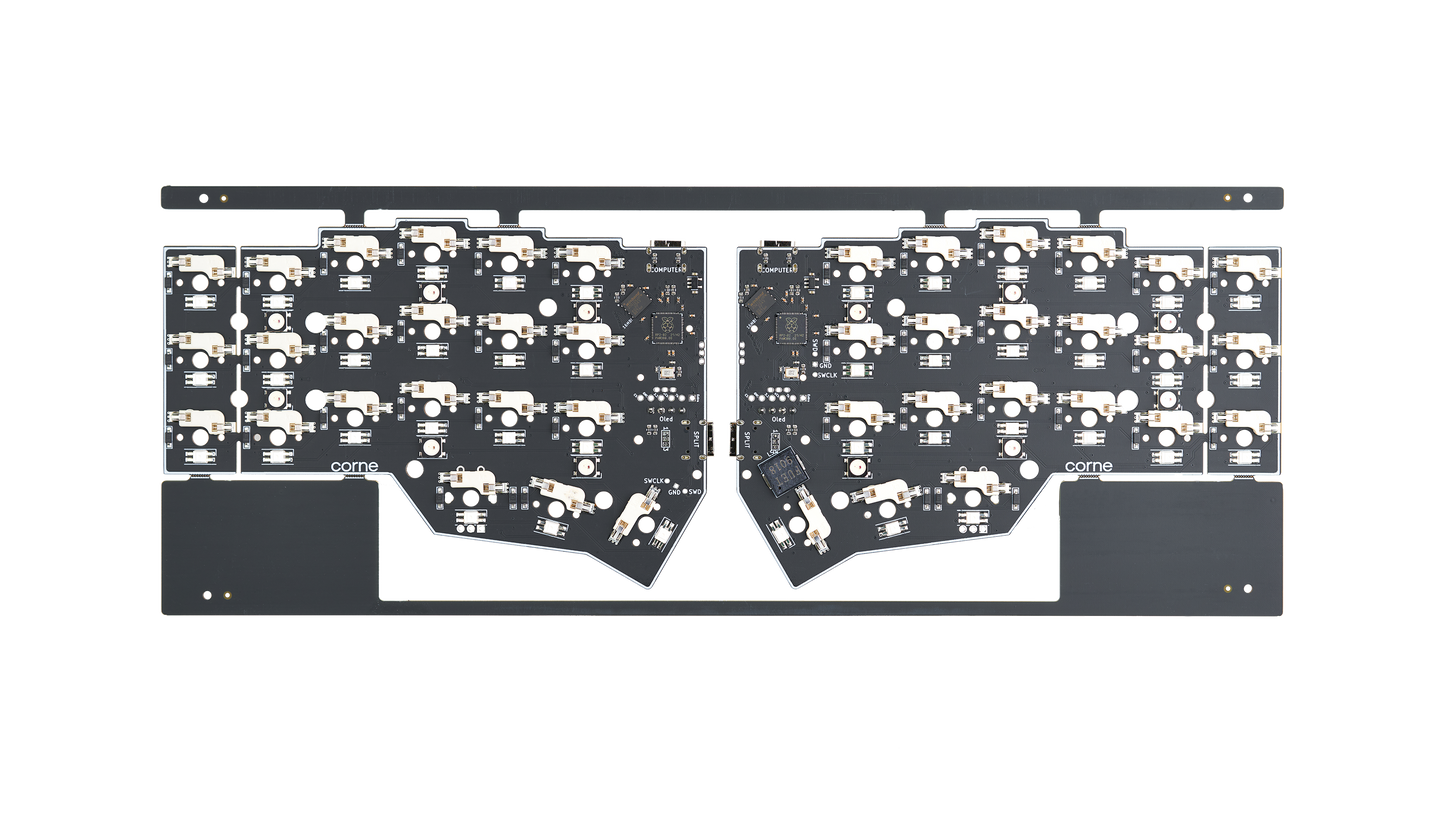

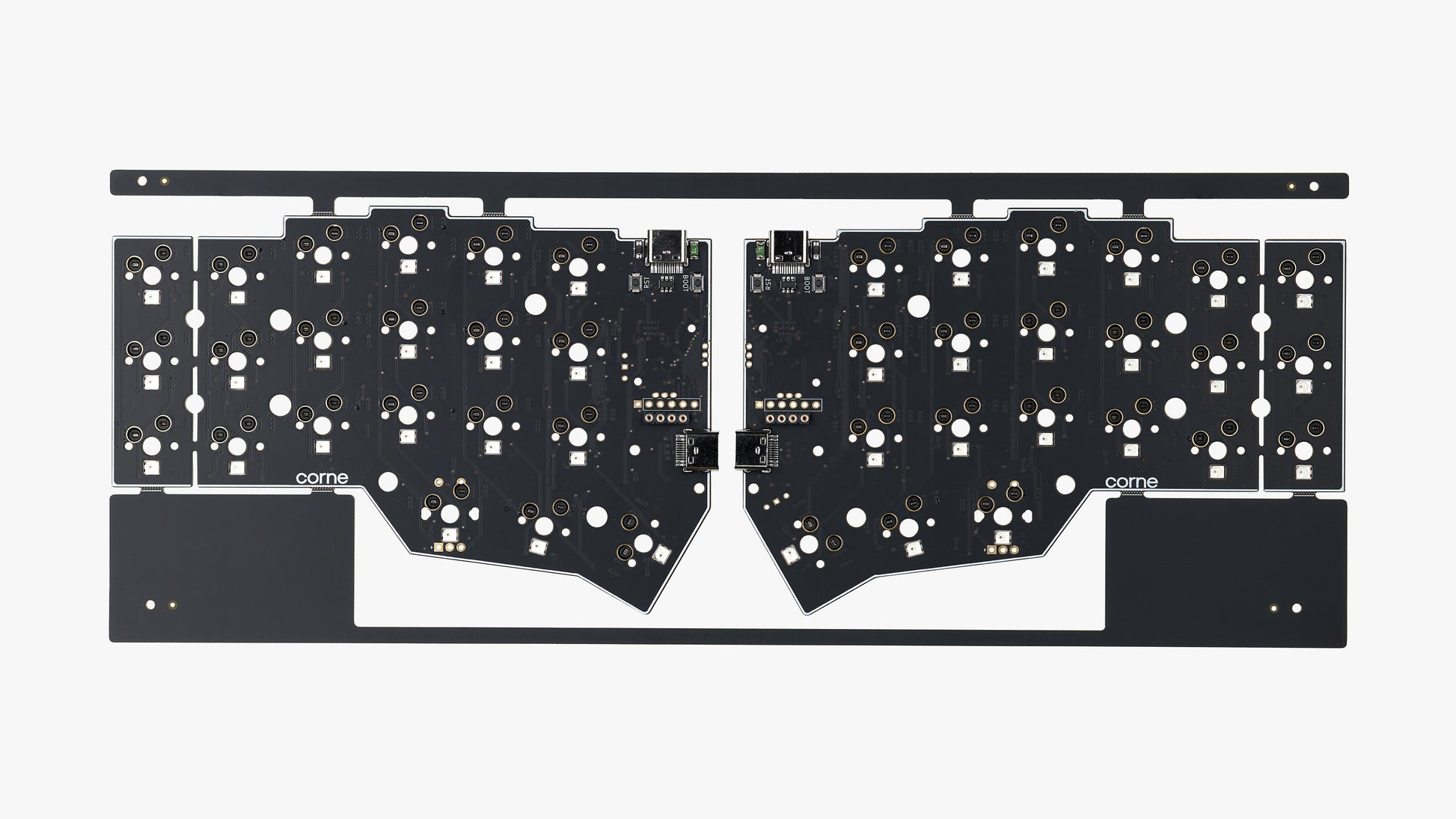

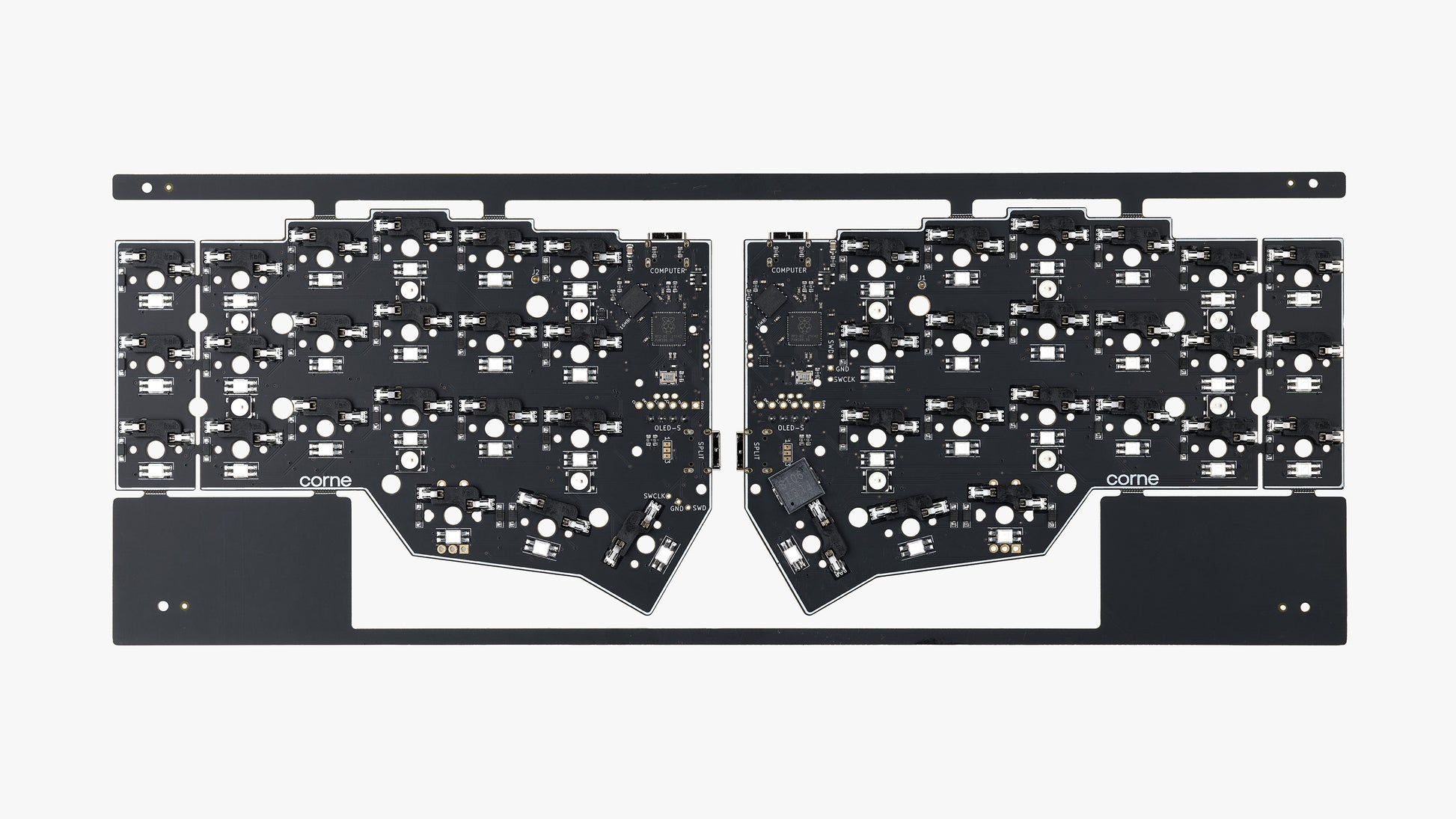

Corne MX SMT PCB - Assembled, Hot Swap, QMK / VIA Compatible Split Keyboard PCB
The Corne MX SMT PCB is our top-of-the-line solution for anyone building a wired Corne (CRKBD) with MX-style switches. It's fully assembled, factory soldered, and designed to make building your Corne fast, easy, and future-proof.
Designed to pair with the Unicorne MX case, but compatible with most Corne-compatible cases, this PCB delivers seamless performance and modern features out of the box.
It’s built around the powerful RP2040 chip and pre-flashed with VIA firmware, offering full QMK/VIA support, hot-swap sockets, and RGB lighting. No soldering required — just install your switches and start customizing.
Whether you're upgrading from a DIY Corne build or starting fresh, this is the PCB we recommend. It’s the easiest way to build a polished, wired Corne with zero hassle.
Features
- Fully assembled and professionally soldered at the factory
- Dual USB-C ports (no TRRS cable required)
- Hot swap sockets for MX-style switches
- RGB per-key and under glow lighting
- QMK & VIA compatible
- Pre-flashed with default VIA keymap
- Fully remappable and programmable
- OLED-S screen support (tool-less socket design)
- Joystick support (compatible with Pro Plate builds)
- Breakaway outer column for optional 5-column Corne layout
- Enhanced ESD protection
Specs
- Layout: Corne / CRKBD (3x6 +3 column-staggered split layout)
- Microcontroller: RP2040
- Firmware: QMK / VIA (pre-flashed with VIA)
- Connection: Dual USB-C
- Compatibility: Works with most Corne MX-style cases
- Color: Matte Black
- Current Version: v1.6
Ideal For
- Wired Corne builders looking for an easier, faster build
- First-time users seeking a fully assembled, no-solder option
- DIYers upgrading from older TRRS-based Corne PCBs
- Fans of hot-swap builds, RGB, and VIA customization
- Programmers and typists seeking ergonomic split layouts
NOTE: For Choc low-profile builds, check out the Corne LP SMT PCB instead.
What's Included
- Fully assembled Corne MX SMT PCB (Left and Right halves, 1 panel)
Shipping and Availability
Ships from Las Vegas, NV. Most orders ship the next business day.
