Corne Wireless SMT PCB – Assembled Hot-Swap, ZMK Compatible

The wireless Corne you actually want to build has arrived!

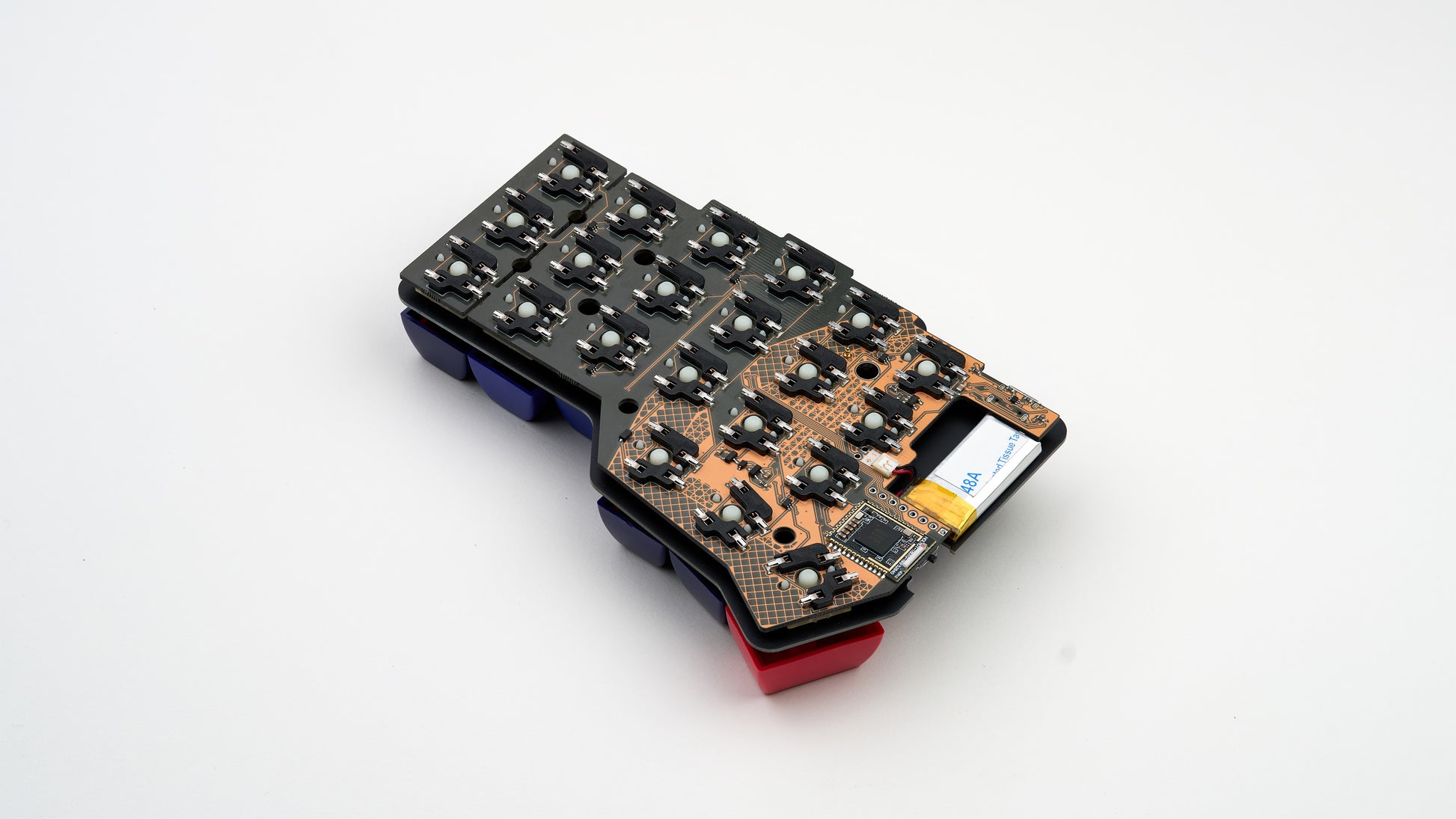

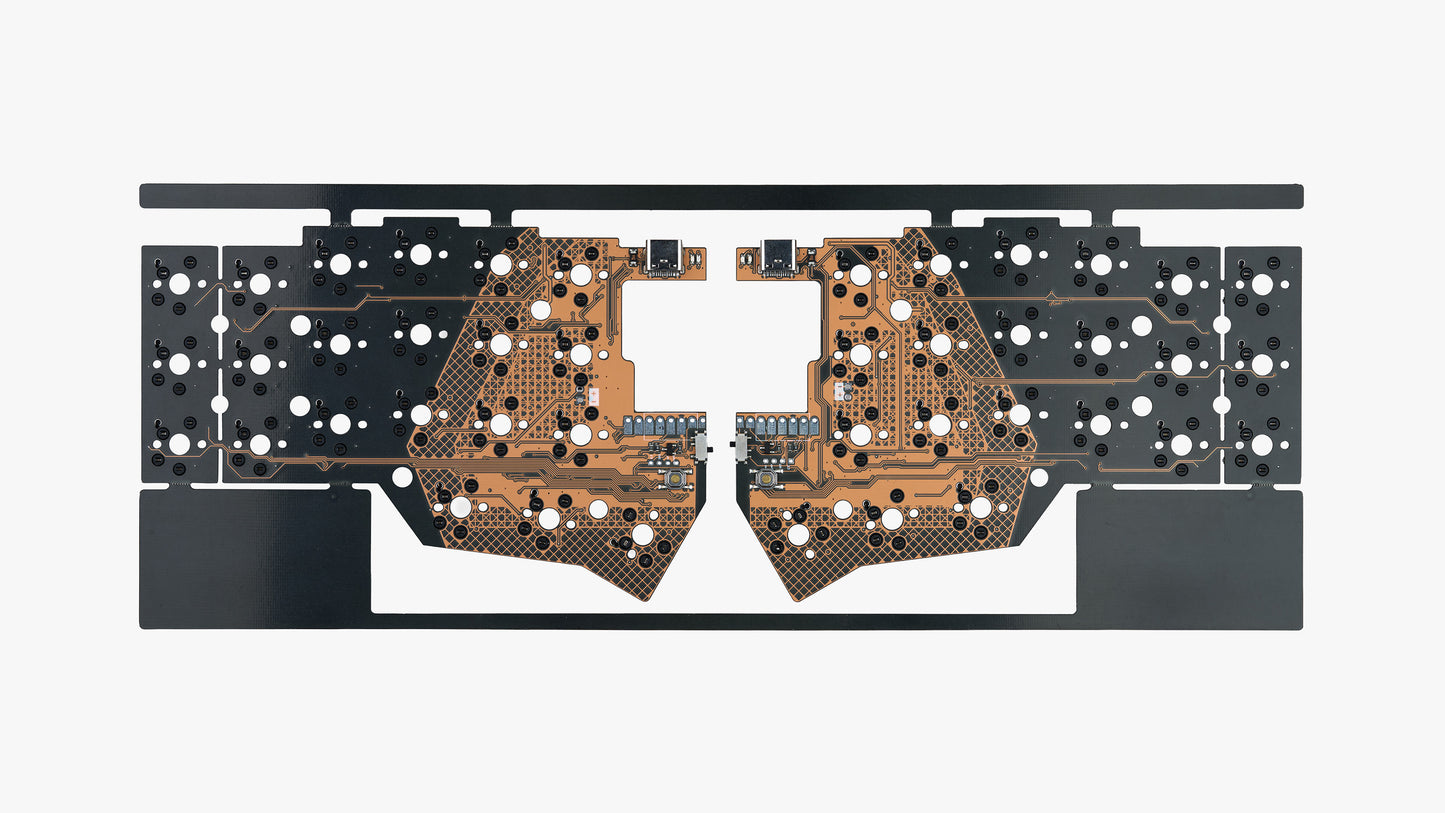

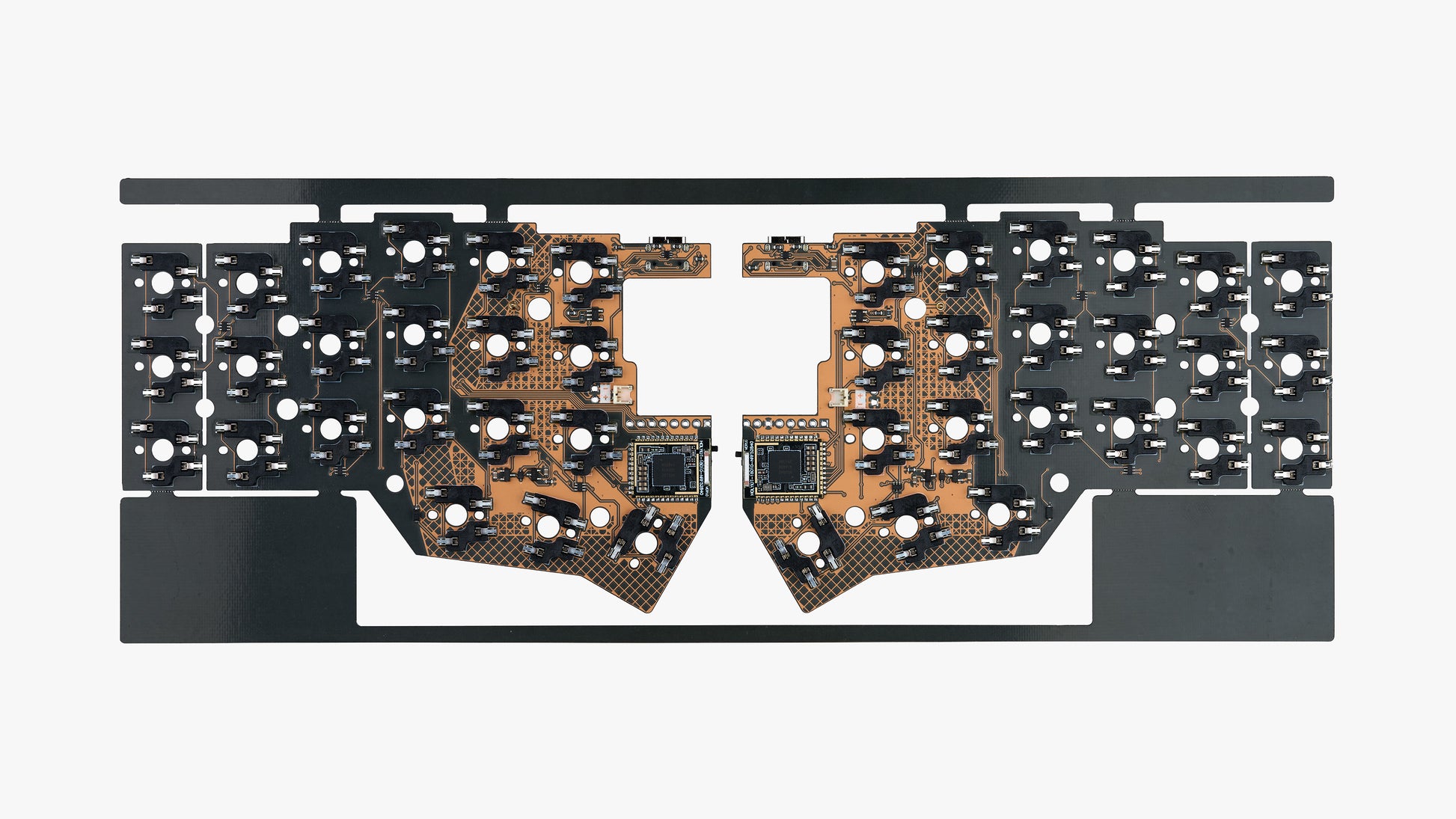

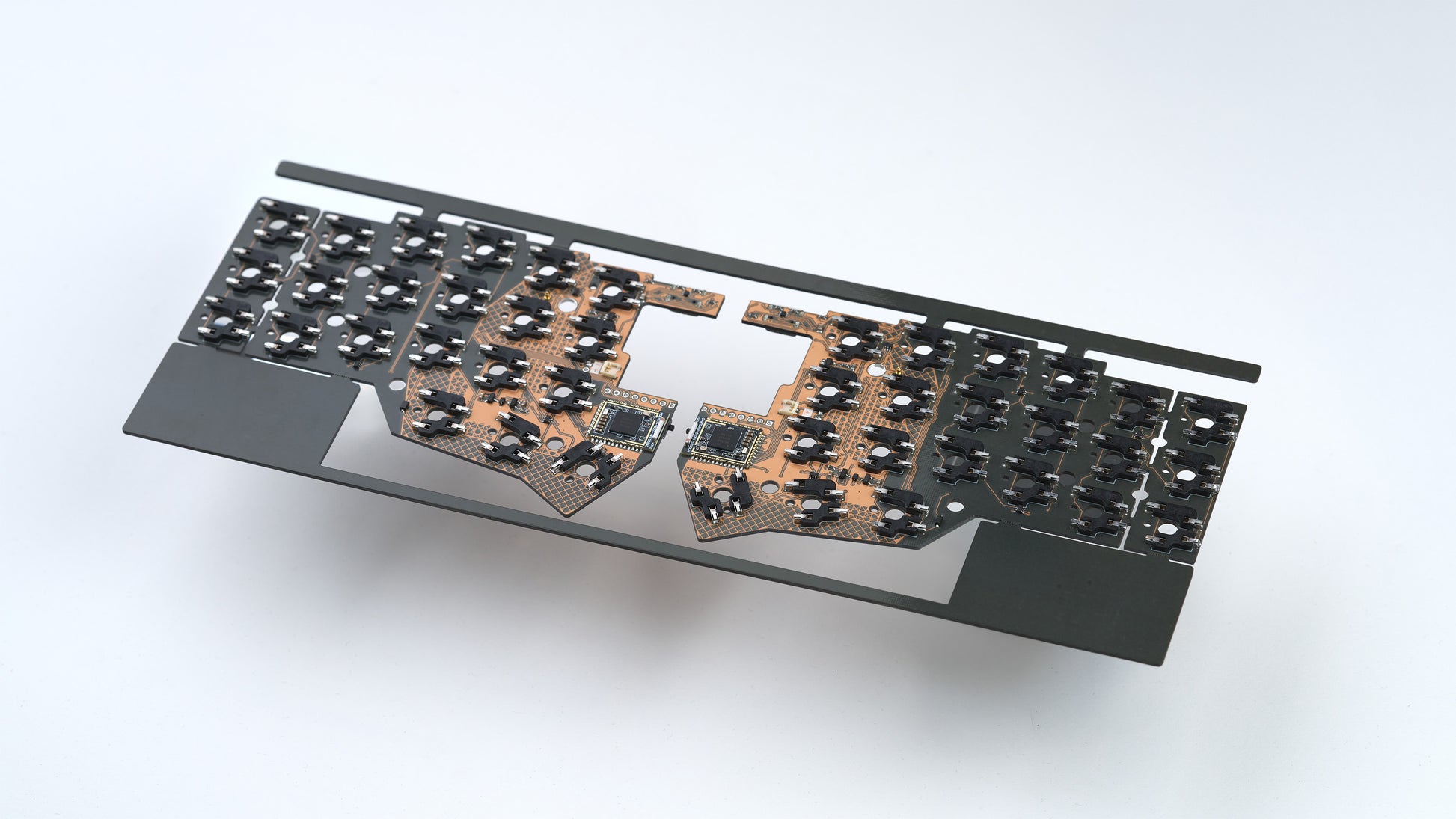

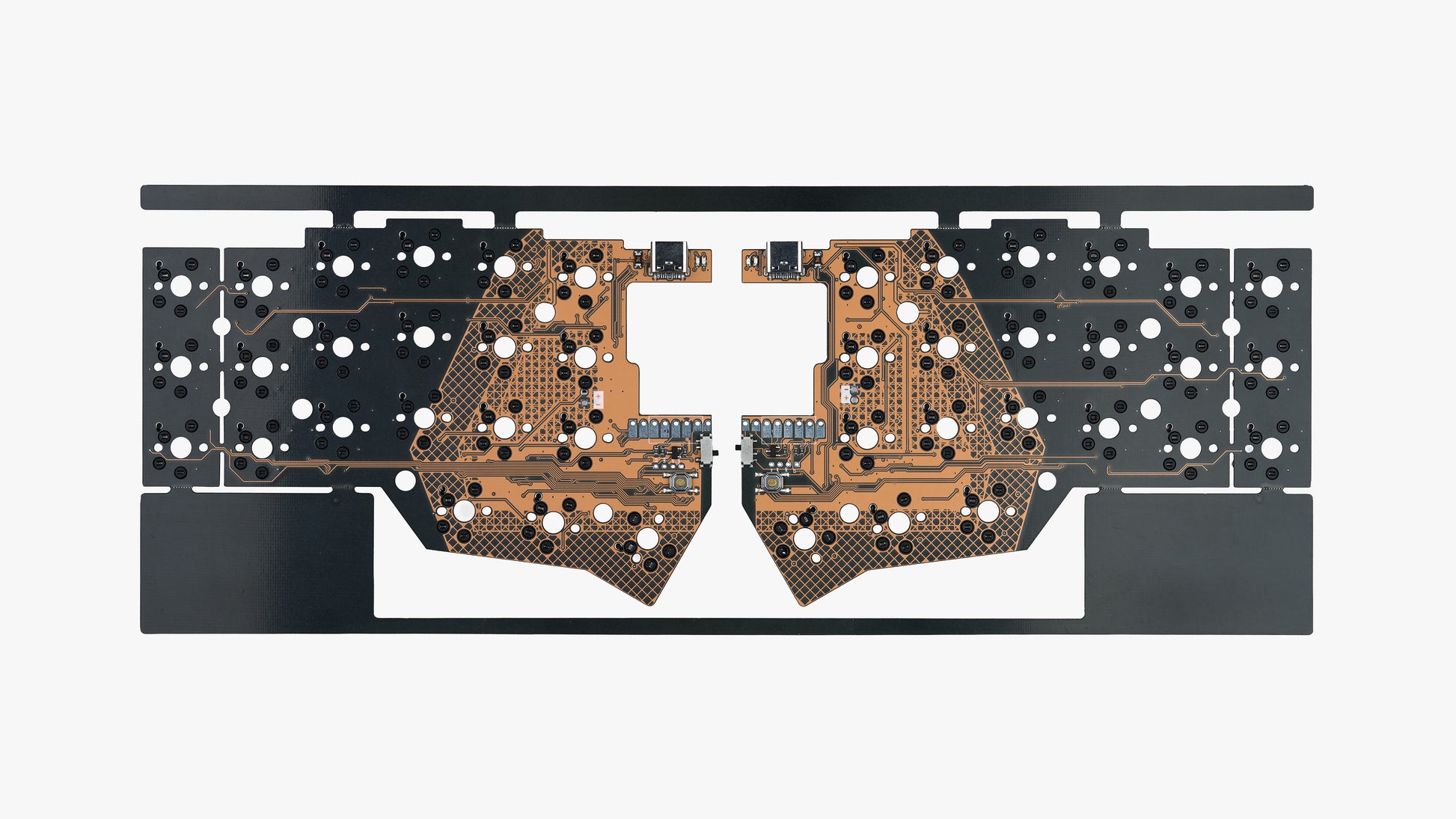

Corne Wireless SMT is a fully assembled, hot-swappable PCB for the Corne / CRKBD layout. It ships pre-flashed with ZMK (ZMK Studio Ready) and requires no soldering, no TRRS cable between halves, and no firmware setup. Drop it in a compatible case, add switches and keycaps, pair, and type.

Whether you are looking for a reliable Wireless Corne or a drop-in wireless upgrade for your existing case, this PCB delivers a premium, cable-free experience.

Why This Board?

  • Zero soldering: Factory-assembled with hot-swap sockets.
  • True cable-free halves: Wireless between halves. No TRRS.
  • ZMK pre-flashed: Ready for pairing and live remapping in ZMK Studio.
  • Universal switch support: MX, Choc v1, and Choc v2 on one PCB.
  • Case friendly: Works with Unicorne and most standard Corne cases.
  • Expandable: 8-pin header for screens and peripherals.

Key Features Hot-swap sockets: Build and iterate without touching a soldering iron.



  • Hot-swap sockets: Build and iterate without touching a soldering iron.
  • ZMK out of the box: Ships pre-configured and compatible with ZMK Studio for real-time keymap changes.
  • Wireless by design: No interconnect cable between halves.
  • MX + Choc footprint: Custom hot-swap footprint supports MX, Choc v1, and Choc v2. Spacing is always 19.05 mm.
  • Case compatibility: Backwards compatible with Unicorne and most 3D-printed, FR4, or stacked acrylic Corne cases.
  • Display/peripheral header: 8-pin expansion header for nice!view or e-ink displays and other add-ons.
  • Power made simple: Dedicated on/off switch positioned for easy access in common cases.
  • Battery options: JST-PH micro connector and solder pads for 3.7 V LiPo packs.

Specs

  • Layout: Corne / CRKBD (3×6 + 3 per side)
  • Firmware: ZMK (pre-flashed), ZMK Studio compatible
  • Switches: MX, Choc v1, Choc v2 (19.05 mm spacing)
  • Battery: 3.7 V LiPo via JST or solder pads
    • Max pack size guidance: Choc up to ~30×17×3 mm, MX up to ~30×17×6 mm
  • Expansion header (8-pin): 0.07, 0.21, 0.12, 0.23, VCC (switched), GND, 0.19, 0.05
    • VCC is switched via GPIO 0.31 for power saving
  • Finish: Black FR4 with clear mask (exposed-trace aesthetic)

Compatibility

  • Cases: Unicorne and most standard Corne / CRKBD cases (3D-printed, stacked acrylic, FR4).
  • Plates: Works with common Corne plate sets.
  • Displays: Header provided for nice!view or e-ink screens.
  • Batteries: 3.7 V LiPo packs (JST or pads). Check regional shipping rules for included batteries.

What's Included?

  • 1x Left Corne Wireless SMT PCB (assembled)
  • 1x Right Corne Wireless SMT PCB (assembled)


Frequently Asked Questions

Is the Corne Wireless SMT PCB fully assembled?

Yes. It’s a fully assembled, hot-swap wireless Corne / CRKBD PCB with the microcontroller, wireless module, and sockets pre-installed. No soldering required.

What firmware does it use?

It ships pre-flashed with ZMK and works with ZMK Studio for real-time keymap changes—ideal for a wireless split Corne build.

Will it fit my existing Corne case?

It works with Unicorne and most standard Corne cases, including many 3D-printed, FR4, and stacked acrylic designed. In order to use the PCB with a Unicorne, a Wireless Plate is required.

What batteries does the PCB support?

3.7 V LiPo packs via JST connector or the +/- solder pads. Typical max sizes: Choc ~30×17×3 mm, MX ~30×17×6 mm.

Which switches are supported?

MX, Choc v1, and Choc v2 on the same PCB. Spacing is always 19.05 mm.

Can I add a display?

Yes. An 8-pin header supports screens such as nice!view and other peripherals. VCC is switchable for power savings.

What is the pinout for the expansion header?

There is an 8-pin header on each side intended for screens (like nice!view) or other peripherals. The pinout from left to right is: 0.07, 0.21, 0.12, 0.23, VCC (Switched), GND, 0.19, 0.05. The VCC pin is controlled via GPIO pin 0.31 to save power.


More quesitons? Check the Doc for the pcb
